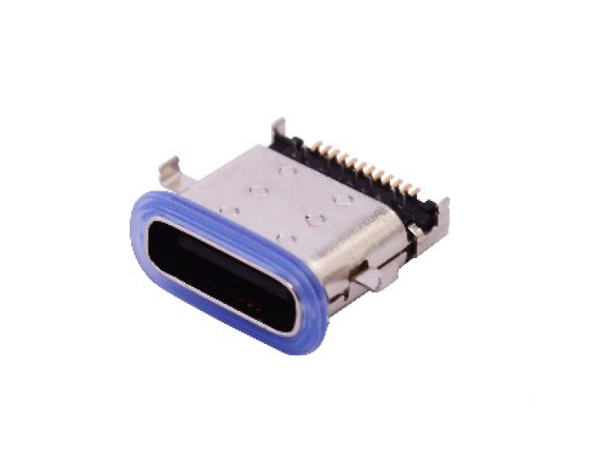

USB TYPE-C:
1.Material/Plated
1.1 Housing:LCP+30%G/F,Black UL 94V-0.
1.2 Terminal:Copper Alloy,Gold Flash Plated At Contact Area,
Matte Tin Plated At Solded Area, Nickel Underplated Overall
1.3 Inner Shell:Stailess steel,Nickel plated
1.4 Signal:Stailess steel
1.5 RFI Pad:Stailess steel
1.6 Outside shell:Stailess steel
2.Electrical Performance
2.1 Voltage Current: 5V
2.2 Rated Current: 3A For VBUS Pin; 1.25A For VCONN Pin
2.3 Contact Resistance: 50m? Max.
2.4 Insulation Resistance: 100M? Min.
2.5 Dielectric Strength: 100V AC
3.Mechanical Performance
3.1 Insertion Force: 5-20N
3.2 Withdraval Force: 8-20N
3.3 Durability: 10000 Cycles
4.Operating Temperature: -40°C To +85°C
