  • UAF-042C1AP

UAF-042C1AP

USB A  TYPE 2.0 Female Connector1.Material/Plated1.1 Housing:Nylon/LCP/PBT,Black/White/Blue UL 94V-0.1.2 Terminal:C
全国热线

13922534862

产品详情 / Introduction

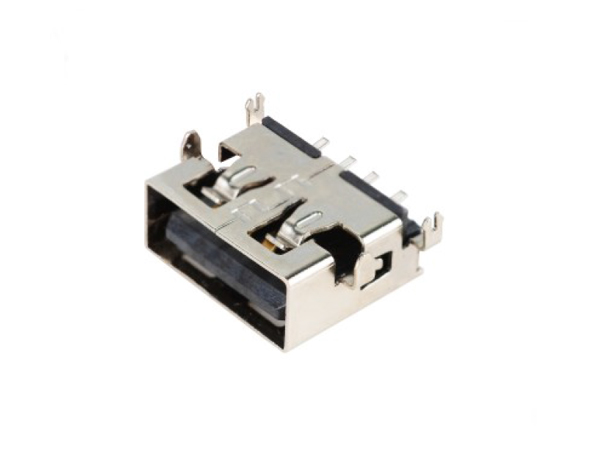

USB A  TYPE 2.0 Female Connector

1.Material/Plated

1.1 Housing:Nylon/LCP/PBT,Black/White/Blue UL 94V-0.

1.2 Terminal:Copper Alloy,Gold Flash Plated At Contact Area,

    Tin Plated At Solded Area, Nickel Underplated Overall

1.3 Shell:Copper Alloy/SPCC,Nickel plated

2.Electrical Performance

2.1 Rated Voltage: 30V AC

2.2 Rated Current: 1.5A

2.3 Contact Resistance: 30mΩ Max.

2.4 Insulation Resistance: 1000MΩ Min.

2.5 Dielectric Strength: 500V AC

3.Mechanical Performance

3.1 Insertion Force: 35N Max.

3.2 Withdraval Force: 10-35N

3.3 Durability: 1500 Cycles

4.Operating Temperature: -25°C To +85°C
