  • UMX-005S1AJ

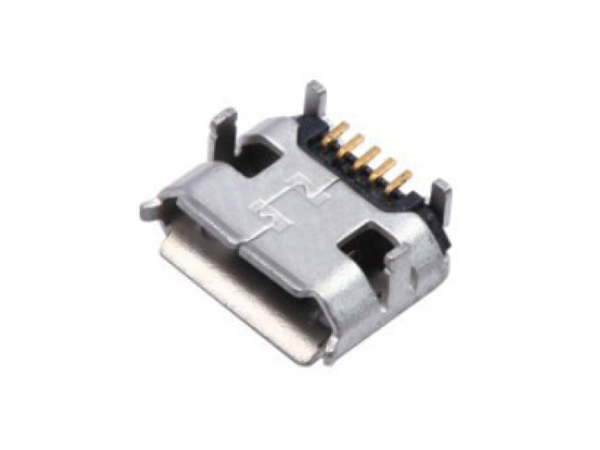

UMX-005S1AJ

Micro USB Female B Type 5P Connector 牛角7.20x5.20mm1.Material/Plated1.1 Housing:LCP,Black UL 94V-0.1.2 Terminal:Copper Al
全国热线

13922534862

产品详情 / Introduction

Micro USB Female B Type 5P Connector 牛角7.20x5.20mm

1.Material/Plated

1.1 Housing:LCP,Black UL 94V-0.

1.2 Terminal:Copper Alloy,Gold Flash Plated At Contact Area,

    Tin Plated At Solded Area, Nickel Underplated Overall

1.3 Shell:Stailess steel/Copper Alloy,Tin/Nickel plated

2.Electrical Performance

2.1 Rated Voltage: 30V AC

2.2 Rated Current: 1.0A

2.3 Contact Resistance: 30mΩ Max.

2.4 Insulation Resistance: 1000MΩ Min.

2.5 Dielectric Strength: 100V AC

3.Mechanical Performance

3.1 Insertion Force: 35N Max.

3.2 Withdraval Force: 8-35N

3.3 Durability: 10000 Cycles

4.Operating Temperature: -25°C To +85°C
