产品详情 / Introduction

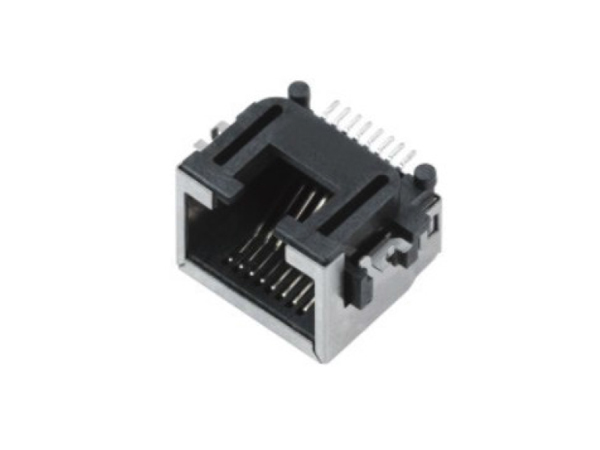

RJ45 Connector

1.Material/Plated

1.1 Housing:LCP,Black UL 94V-0.

1.2 Terminal:Copper Alloy,Gold Flash Plated

    Nickel Underplated Overall

1.3 Shell:Stailess steel,Nickel plated

2.Electrical Performance

2.1 Rated Voltage: 125V AC

2.2 Rated Current: 1.5A

2.3 Contact Resistance: 50mΩ Max.

2.4 Insulation Resistance: 1000MΩ Min.

2.5 Dielectric Strength: 1000V AC

3.Mechanical Performance

3.1 Insertion Force: 22N Max.

3.2 Durability: 750 Cycles

4.Operating Temperature: -25°C To +85°C
