  • HDA-13S

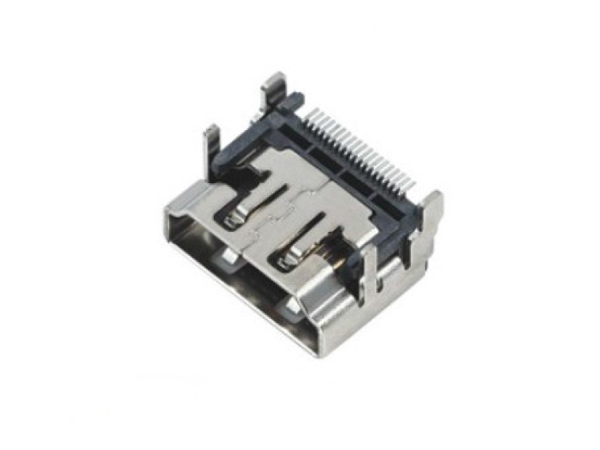

HDA-13S

HDMI A TYPE Female Connector1.Material/Plated1.1 Housing:LCP,Black UL 94V-0.1.2 Terminal:Copper Alloy,Gold Flash Plated
全国热线

13922534862

产品详情 / Introduction

HDMI A TYPE Female Connector

1.Material/Plated

1.1 Housing:LCP,Black UL 94V-0.

1.2 Terminal:Copper Alloy,Gold Flash Plated At Contact Area,

    Tin Plated At Solded Area, Nickel Underplated Overall

1.3 Shell:Copper Alloy,Nickel Plated

2.Electrical Performance

2.1 Rated Voltage: 40V AC

2.2 Rated Current: 0.5A

2.3 Contact Resistance: 30mΩ

2.4 Insulation Resistance: 1000MΩ

2.5 Dielectric Strength: 500V AC

3.Mechanical Performance

3.1 Insertion Force: 44.1Newtons

3.2 Withdraval Force: 9.8-39.2Newtons

3.3 Durability: 10000 Cycles

4.Operating Temperature: -40°C To +85°C
