  • FP-05A20

FP-05A20

FPC Pitch 0.50mm Connector1.Material/Plated1.1 Housing:High Temperature Thermoplastic,     Natural UL 94V
全国热线

13922534862

产品详情 / Introduction

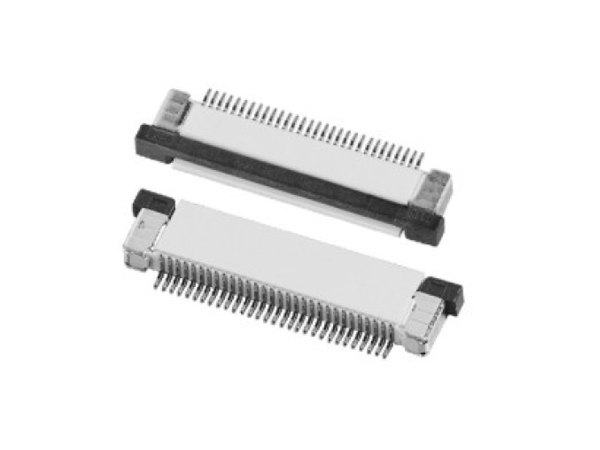

FPC Pitch 0.50mm Connector

1.Material/Plated

1.1 Housing:High Temperature Thermoplastic,

    Natural UL 94V-0.

1.2 Actuator:High Temperature Thermoplastic,

    Black UL 94V-0.

1.3 Terminal:Copper Alloy,Tin Plated,Nickel

    Underplated Overall.

1.4 Fitting Nail:Copper Alloy,Tin Plated,

    Nickel Underplated Overall

2.Electrical Performance

2.1 Rated Voltage: 25V AC

2.2 Rated Current:0.3A

2.3 Contact Resistance:30mΩ Max.

2.4 Insulation Resistance: 500MΩ Min.

2.5 Dielectric Strength:250V AC

3.Operating Temperature: -25°C To +85°C
