  • UAF-028V1AP

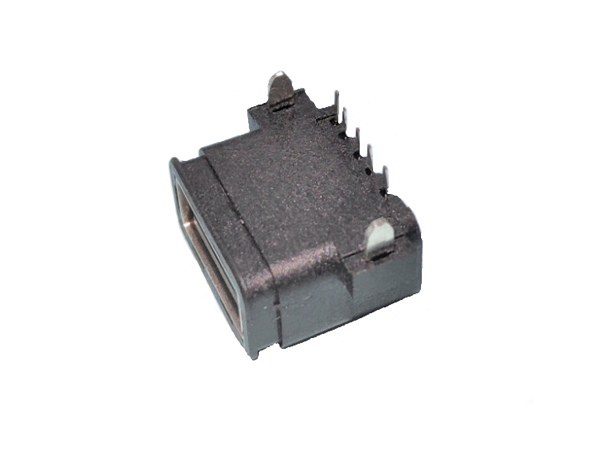

UAF-028V1AP

USB A/B TYPE:1.Material/Plated1.1 Housing:LCP,Black UL 94V-0.1.2 Terminal:Copper Alloy,Gold Flash Plated At Contact Area
全国热线

13922534862

产品详情 / Introduction

USB A/B TYPE:

1.Material/Plated

1.1 Housing:LCP,Black UL 94V-0.

1.2 Terminal:Copper Alloy,Gold Flash Plated At Contact Area,

    Tin Plated At Solded Area, Nickel Underplated Overall

1.3 Shell:Copper Alloy,Nickel plated

2.1 Rated Voltage: 30V AC

2.2 Rated Current: 1.5A

2.3 Contact Resistance: 30m? Max.

2.4 Insulation Resistance: 1000M? Min.

2.5 Dielectric Strength: 500V AC

3.Mechanical Performance

3.1 Insertion Force: 35N Max.

3.2 Withdraval Force: 10-35N

3.3 Durability: 1500 Cycles

4.Operating Temperature: -25°C To +85°C
