  • UMX-023W3AP

UMX-023W3AP

UMX-023W1AP  Micro USB B 5P Straight waterproof IPX81.Material/Plated1.1 Housing:LCP,Black UL 94V-0.1.2 Plastic Hoo
全国热线

13922534862

产品详情 / Introduction

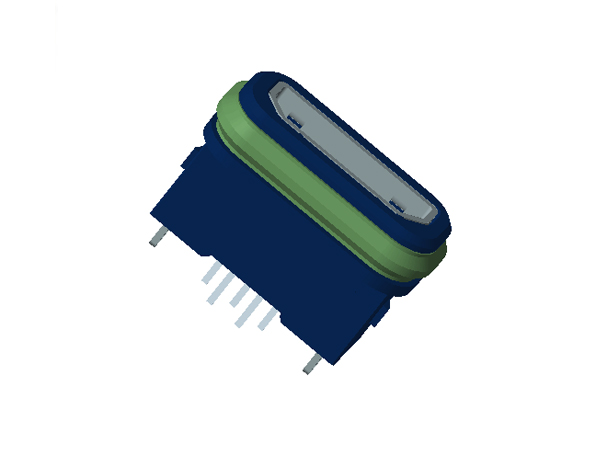

UMX-023W1AP  Micro USB B 5P Straight waterproof IPX8

1.Material/Plated

1.1 Housing:LCP,Black UL 94V-0.

1.2 Plastic Hood:LCP,Black UL 94V-0.

1.3 Terminal:Copper Alloy,Gold Flash Plated At Contact Area,

    Tin Plated At Solded Area, Nickel Underplated Overall

1.4 Shell:Stailess steel,Tin/Nickel plated Overall

1.5 Seal Ring:Silica gel

1.6 Glue:Black

2.Electrical Performance

2.1 Rated Voltage: 30V AC

2.2 Rated Current: 1.0A

2.3 Contact Resistance: 30m? Max.

2.4 Insulation Resistance: 1000M? Min.

2.5 Dielectric Strength: 100V AC

3.Mechanical Performance

3.1 Insertion Force: 35N Max.

3.2 Withdraval Force: 8-35N

3.3 Durability: 10000 Cycles

4.Operating Temperature: -25°C To +85°C

5.Waterproof:IPX8
