  • PJ-362CX

PJ-362CX

Ø3.5mm PHONE JACK1.Material/Plated1.1 Housing:LCP,Black UL 94V-0.1.2 Terminal:Copper Alloy,Gold Plated  2.Elec
全国热线

13922534862

产品详情 / Introduction

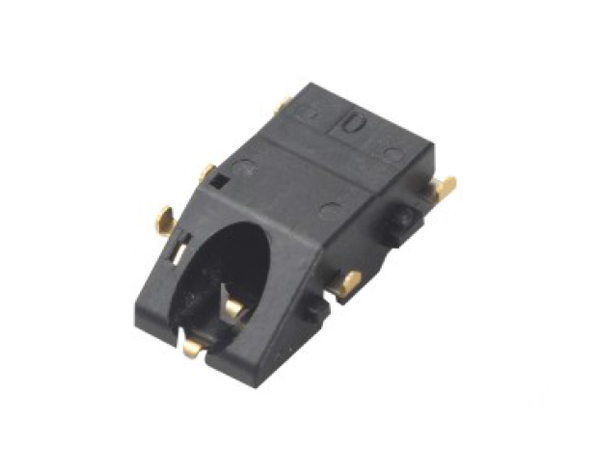

Ø3.5mm PHONE JACK

1.Material/Plated

1.1 Housing:LCP,Black UL 94V-0.

1.2 Terminal:Copper Alloy,Gold Plated

2.Electrical Performance

2.1 Rated Voltage: 30V AC

2.2 Rated Current: 0.5A

2.3 Contact Resistance: 100mΩ Max.

2.4 Insulation Resistance: 100MΩ Min.

2.5 Dielectric Strength: 500V AC

3. Mechanical Performance

3.1 Insertion Force: 3-30N

3.2 Withdraval Force: 3-30N

3.3 Durability: 5000 Cycles

4.Operating Temperature: -25°C To +85°C
